Motoreduktory walcowe proste CHC moc silnika 0,37 kW
|
|

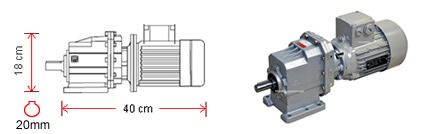

• Wymiary 2D DWG |
| Lp. | Symbol |
n2 [r/min] |
m2 [Nm] |
Przełożenie i | Współczynnik fs | Cena zł netto |
| 26 | Motoreduktor CHC20-P-45,9-P-0,37kW | 29.84 | 111 | 45.9 | 1.1 | 1424.00 PLN |
| 27 | Motoreduktor CHC20-P-40,1-P-0,37kW | 34.16 | 97 | 40.1 | 1.2 | 1424.00 PLN |
| 28 | Motoreduktor CHC20-P-35,5-P-0,37kW | 38.59 | 86 | 35.5 | 1.4 | 1424.00 PLN |
| 29 | Motoreduktor CHC20-P-28,5-P-0,37kW | 48.07 | 69 | 28.5 | 1.7 | 1424.00 PLN |
| 30 | Motoreduktor CHC20-P-23,6-P-0,37kW | 58.05 | 57 | 23.6 | 2.1 | 1424.00 PLN |
| 31 | Motoreduktor CHC20-P-19,8-P-0,37kW | 69.19 | 48 | 19.8 | 2.5 | 1424.00 PLN |
| 32 | Motoreduktor CHC20-P-17,9-P-0,37kW | 76.53 | 43 | 17.9 | 2.3 | 1424.00 PLN |
| 33 | Motoreduktor CHC20-P-13,8-P-0,37kW | 99,27 | 33 | 13.8 | 3.0 | 1424.00 PLN |
| 34 | Motoreduktor CHC20-P-11,9-P-0,37kW | 115.12 | 29 | 11.9 | 4.2 | 1424.00 PLN |
| 35 | Motoreduktor CHC20-P-9,8-P-0,37kW | 139,79 | 24 | 9.8 | 4.2 | 1424.00 PLN |
| 36 | Motoreduktor CHC20-P-7,7-P-0,37kW | 177.92 | 19 | 7.7 | 4.3 | 1424.00 PLN |
| 37 | Motoreduktor CHC20-P-5,7-P-0,37kW | 240.35 | 14 | 5.7 | 4.4 | 1424.00 PLN |
| 38 | Motoreduktor CHC20-P-4,6-P-0,37kW | 297.82 | 11 | 4.6 | 4.5 | 1424.00 PLN |
|
|

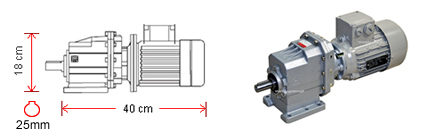

• Wymiary 2D DWG |
| Lp. | Symbol |
n2 [r/min] |
m2 [Nm] |
Przełożenie i | Współczynnik fs | Cena zł netto |
| 39 | Motoreduktor CHC25-P-46,5-P-0,37kW | 29.46 | 113 | 46.5 | 1.8 | 1590.00 PLN |
| 40 | Motoreduktor CHC25-P-40,6-P-0,37kW | 33.74 | 98 | 40.6 | 2.0 | 1590.00 PLN |
| 42 | Motoreduktor CHC25-P-35,9-P-0,37kW | 38.16 | 87 | 35.9 | 2.3 | 1590.00 PLN |
| 43 | Motoreduktor CHC25-P-28,9-P-0,37kW | 47.40 | 70 | 28.9 | 2.9 | 1590.00 PLN |
| 44 | Motoreduktor CHC25-P-23,8-P-0,37kW | 57.56 | 58 | 23.8 | 3.5 | 1590.00 PLN |
| 45 | Motoreduktor CHC25-P-20,1-P-0,37kW | 68.15 | 48 | 20.1 | 3.7 | 1682.00 PLN |
| 46 | Motoreduktor CHC25-P-17,1-P-0,37kW | 80.11 | 41 | 17.1 | 3.9 | 1682.00 PLN |
| 47 | Motoreduktor CHC25-P-14,8-P-0,37kW | 92.56 | 35 | 14.8 | 4.2 | 1682.00 PLN |
| 48 | Motoreduktor CHC25-P-12,1-P-0,37kW | 113.22 | 29 | 12.1 | 4.5 | 1682.00 PLN |
| 49 | Motoreduktor CHC25-P-9,9-P-0,37kW | 138.38 | 23.5 | 9.9 | 4.8 | 1682.00 PLN |
| 50 | Motoreduktor CHC25-P-7,4-P-0,37kW | 185.13 | 17.5 | 7.4 | 5.1 | 1682.00 PLN |
| 51 | Motoreduktor CHC25-P-5,5-P-0,37kW | 249.09 | 13 | 5.5 | 5.4 | 1682.00 PLN |
